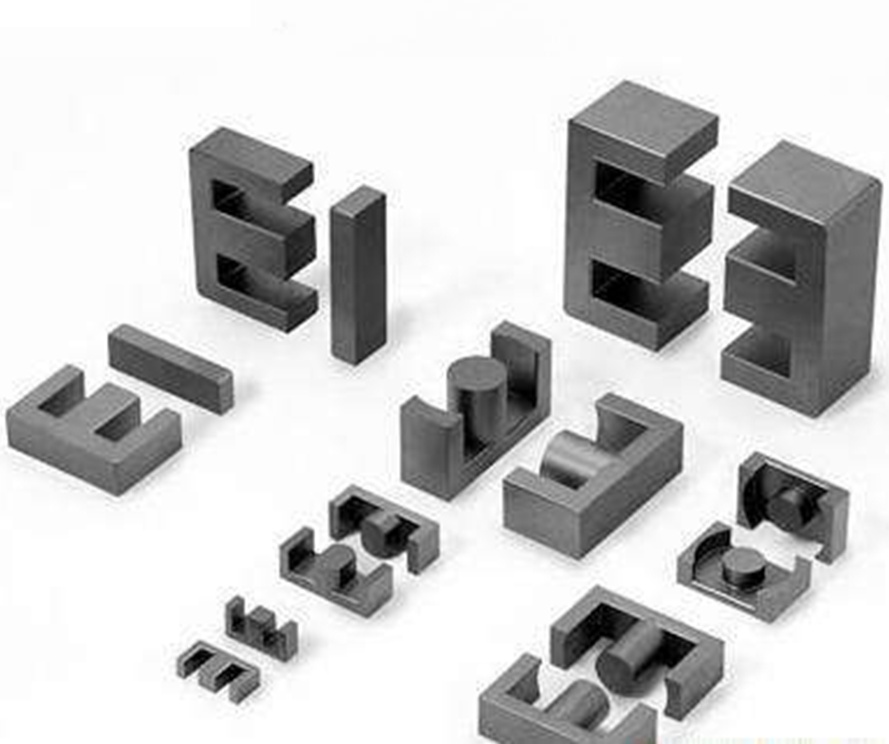

EE型磁芯
- 質量穩定：實行全過程質量監控，一絲不茍，檢測！
- 合理的價格：有效的內部成本控制，減少開支，為客戶服務！
- 快速交貨：完善的生產線，充足的庫存，縮短交貨時間！
- 電話：15955032233
- 傳真：0539-6015306
- 郵箱：351856373@qq.com、sales@yfcore.com
介紹

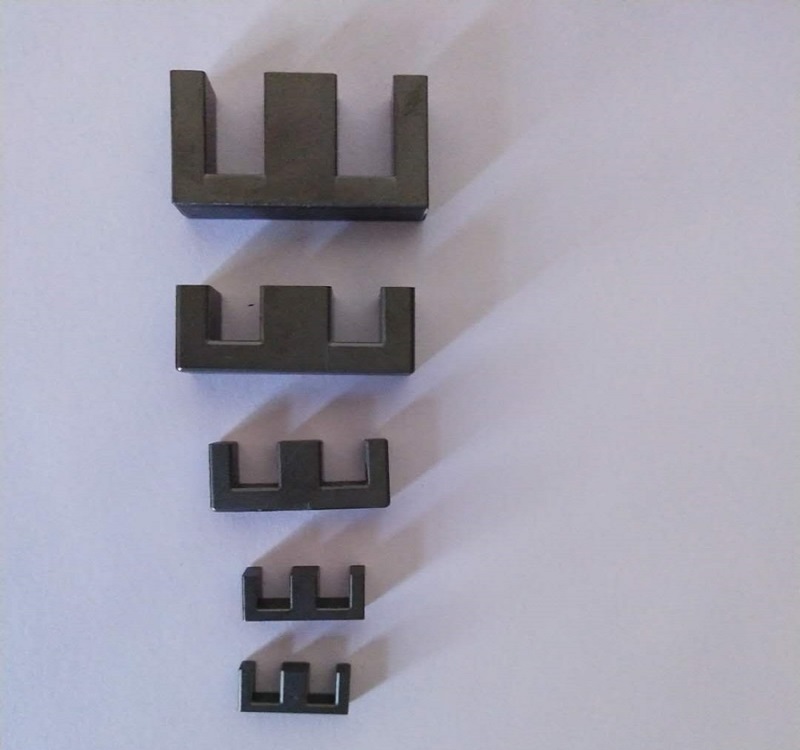

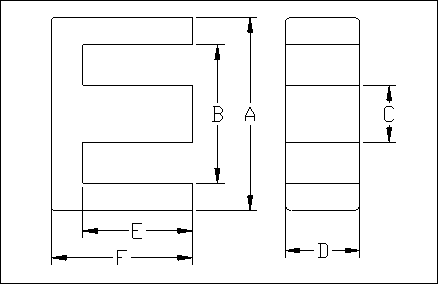

| 型號 | 毛重 | 尺寸 | |||||
| A | Bmin | C | D | E | F | ||
| EE13A | 2.95 | 13.0±0.3 | 10.2±0.3 | 2.6±0.2 | 5.9±0.2 | 4.6±0.1 | 6.0±0.2 |
| EE15/12/10 | 6.2 | 15.3±0.3 | 12.2±0.3 | 3.4±0.2 | 12.0±0.2 | 3.2±0.15 | 4.9±0.15 |
| EE16/7/5 | 5 | 16.0±0.3 | 12.0±0.3 | 3.8±0.2 | 4.8±0.2 | 5.2±0.2 | 7.2±0.1 |
| EE16/8/5 | 6 | 16.1±0.6 | 11.3 | 4.55±0.2 | 4.5±0.2 | 5.9±0.2 | 8.0±0.2 |
| EE19 | 5.5 | 19.0±0.3 | 14.0 | 4.8±0.3 | 4.8±0.3 | 5.7±0.2 | 8.0±0.3 |
| EEL19 | 8.6 | 19.5±0.4 | 14.6min | 4.85±0.25 | 4.85±0.25 | 11.2±0.2 | 14.0±0.3 |
| EE20 | 8.4 | 20.0±0.7 | 12.8 | 5.0±0.4 | 6.0±0.4 | 6.5±0.3 | 10.0±0.3 |
| EF20 | 8.8 | 20.15±0.7 | 14.1 | 5.7±0.3 | 5.65±0.3 | 7.0±0.3 | 10.0±0.25 |
| EF21 | 9 | 20.7±0.7 | 15.0 | 5.7±0.3 | 5.65±0.3 | 7.3±0.2 | 10.1±0.2 |
| EF21A | 8.8 | 21.6±0.7 | 15.5 | 5.7±0.3 | 5.7±0.3 | 7.5±0.25 | 10.3±0.25 |
| EE22 | 10 | 22.0±0.6 | 15.6 | 5.7±0.3 | 5.7±0.3 | 5.6±0.3 | 9.6±0.3 |
| EE22/23/6 | 11.7 | 22.0±0.6 | 15.6 | 5.7±0.3 | 5.7±0.3 | 7.5±0.3 | 11.5±0.3 |
| EF25 | 17.5 | 25.0±0.4 | 18.6±0.3 | 7.2±0.3 | 7.2±0.3 | 9.0±0.2 | 12.6±0.2 |
| EE25.4 | 11 | 25.4±0.7 | 18.7 | 6.5±0.2 | 6.3±0.3 | 6.6±0.4 | 10.0±0.4 |
| EEL25 | 18 | 25.5±0.6 | 19.4±0.4 | 6.5±0.25 | 6.4±0.25 | 13.1±0.25 | 16.3±0.25 |
| EEL27 | 33 | 27.0±0.6 | 19.0 min | 7.8±0.25 | 10.5±0.3 | 11.5±0.25 | 15.5±0.25 |
| EE28 | 24 | 28.0±0.6 | 18.6 | 7.2±0.2 | 10.7±0.3 | 6.5±0.3 | 10.5±0.3 |
| EE28.5 | 23 | 28.8±0.6 | 21.1 | 7.2±0.2 | 10.4±0.2 | 6.5±0.3 | 10.5±0.3 |
| EE30/7 | 24 | 30.0±0.5 | 19.9±0.4 | 6.9±0.3 | 7.1±0.2 | 10.0±0.2 | 15.0±0.2 |
| EE32/9.5 | 36 | 32.1±0.5 | 22.7 | 9.5±0.3 | 9.5±0.2 | 11.5±0.3 | 16.4±0.2 |
| EE32/11 | 42 | 32.1±0.5 | 22.7 | 9.5±0.3 | 11.0±0.2 | 11.5±0.3 | 16.4±0.2 |
| EE32.6/37/9.5 | 40 | 32.6±0.5 | 23.6 | 9.5±0.3 | 9.5±0.2 | 14.3±0.3 | 18.6±0.3 |
| EE33A | 42 | 34.0±0.5 | 24 | 9.6±0.3 | 12.7±0.3 | 9.8±0.3 | 14.1±0.3 |
| EE35/18 | 45 | 35.0±0.6 | 24.6 | 10.0±0.3 | 10.0±0.3 | 12.5±0.3 | 17.5±0.3 |
| EE35/28 | 33 | 34.2±0.6 | 24 | 9.5±0.3 | 10.0±0.3 | 9.2±0.3 | 13.7±0.3 |
| EE42/42/15 | 93 | 42.1±0.9 | 29.5 | 12.0±0.3 | 15.0±0.3 | 15.2±0.4 | 21.1±0.3 |
| EE42/42/20 | 121 | 42.1±0.9 | 29.5 | 12.0±0.3 | 19.7±0.4 | 15.2±0.4 | 21.1±0.3 |
| EE42/50/15 | 108 | 42.1±0.9 | 29.5 | 12.0±0.3 | 15.0±0.3 | 19.0±0.4 | 25.0±0.3 |
| EE50 | 120 | 50.0±0.7 | 34.2 | 14.6±0.4 | 14.6±0.4 | 13.1±0.3 | 21.5±0.3 |
| EE55A | 186 | 55.1±1.1 | 37.5 | 17.0±0.3 | 16.9±0.3 | 18.8±0.3 | 27.5±0.3 |
| EE55B | 230 | 55.1±1.1 | 37.5 | 17.0±0.3 | 20.7±0.4 | 18.8±0.3 | 27.5±0.3 |
| EE55C | 272 | 55.1±1.1 | 37.5 | 17.0±0.3 | 24.7±0.4 | 19.3±0.3 | 27.8±0.3 |
| EE59/57/25 | 300 | 59.0±1.5 | 41.5 | 16.9±0.3 | 24.7±0.4 | 20.0±0.3 | 28.5±0.3 |
| EE64/30/51 | 287 | 64.0±1.3 | 53.5±1.3 | 10.2±0.2 | 50.8±0.8 | 10.0±0.3 | 15.0±0.3 |
| EE65A | 304 | 65.2±1.3 | 44.2 | 19.6±0.3 | 19.6±0.3 | 22.5±0.3 | 32.5±0.3 |
| EE65B | 416 | 65.2±1.3 | 44.2 | 19.6±0.3 | 27.0±0.3 | 22.5±0.3 | 32.5±0.3 |
| EE70A | 412 | 70.5±1.5 | 48.0 | 16.7±0.5 | 24.5±0.6 | 24.6±0.6 | 35.5±0.5 |
| EE70B | 530 | 70.7±1.5 | 48.0 | 21.5±0.5 | 30.5±0.6 | 22.5±0.6 | 33.2±0.4 |
| EE70/72 | 418 | 70.5±1.5 | 48.0 | 21.5±0.5 | 30.5±0.6 | 25.2±0.6 | 36.0±0.5 |
| EE73/70 | 570 | 73.0±1.5 | 50.0 | 21.5±0.5 | 30.5±0.6 | 24.3±0.6 | 35.0±0.4 |
| EE80/38/20 | 396 | 80.7±2.0 | 59.1 | 20.0±0.5 | 20.0±0.6 | 28.0±0.5 | 38.0±0.5 |
| EE85A | 726 | 85.0±3.0 | 55.0 | 27.0±0.4 | 26.5±0.5 | 29.0±0.5 | 44.0±1.0 |
| EE85B | 860 | 85.0±3.0 | 55.0 | 27.0±0.4 | 31.5±0.5 | 29.0±0.5 | 44.0±1.0 |
| EE100 | 1173 | 100.0+3.0/-1.5 | 72.0min | 28.0±0.5 | 28.0±0.5 | 46.0±0.5 | 60.0±0.5 |
| EE110 | 1700 | 110.0±3.0 | 74.2 | 36.0±1.0 | 36.0±1.0 | 38.7±0.6 | 57.0±0.5 |
| EE130 | 2410 | 130.0±3.0 | 89.0 | 40.0±2.0 | 40.0±1.0 | 43.0±0.8 | 63.0±1.0 |
| EE160 | 3400 | 160.0±3.0 | 120.0 | 40.0±2.0 | 20.0±1.5 | 64.0±1.0 | 83.0±1.0 |
| EE188 | 6880 | 185.0±3.5 | 128.0 | 55.5±2.5 | 55.0±2.0 | 49.0±1.5 | 79.0±1.5 |
| EE193 | 6880 | 193.0±3.5 | 132.0 | 58.0±2.0 | 59.0±2.0 | 49.0±1.5 | 79.0±1.5 |
| EE210 | 5620 | 210.0±3.5 | 149.0 | 58.0±2.0 | 40.0±1.0 | 65.0±1.5 | 95.0±1.5 |
| EE240 | 7000 | 240.0±4.0 | 176.0 | 56.0±3.0 | 40.0±1.5 | 86.5±1.0 | 117.0±1.0 |
| 型號 | 有效參數 | AL±25%(nH/N^2) | 凈重 | ||||||||||
| C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | ZH5K | ZH7K | ZH10K | |||
| EE13A | 1.880 | 30.3 | 16.0 | 487.0 | 1000 | 2750 | 3500 | 5000 | 2.4 | ||||
| EE15/12/10 | 0.660 | 26.780 | 39.650 | 1062.000 | 3300 | 5.5 | |||||||
| EE16A | 1.920 | 35.5 | 18.4 | 655.0 | 1100 | 2650 | 3400 | 4900 | 3.2 | ||||
| EE16B | 1.930 | 37.7 | 19.5 | 737.0 | 1100 | 2680 | 3400 | 4850 | 3.5 | ||||
| EE19 | 1.740 | 39.6 | 22.8 | 903.0 | 1150 | 2950 | 3750 | 5400 | 4.6 | ||||
| EEL19 | 2.660 | 62.2 | 23.4 | 1458.2 | 900 | 7.6 | |||||||
| EE20 | 1.210 | 47.1 | 39.0 | 1840.0 | 1700 | 5800 | 7.5 | ||||||
| EF20 | 1.440 | 45.8 | 31.8 | 1458 | 1380 | 7.5 | |||||||
| EF21 | 1.440 | 45.8 | 31.8 | 1458 | 1380 | 7.5 | |||||||
| EF21A | 1.650 | 49.6 | 30.6 | 1520 | 1300 | ||||||||
| EE22 | 1.12 | 42.3 | 37.8 | 1600.0 | 1800 | 9.0 | |||||||
| EE22/23/6 | 1.47 | 50.9 | 34.5 | 1750.0 | 1600 | 10.0 | |||||||
| EF25 | 1.100 | 57.5 | 52.1 | 3000.0 | 1900 | 15.2 | |||||||
| EE25.4 | 1.080 | 47.9 | 44.5 | 2130.0 | 2000 | 10.9 | |||||||
| EEL25 | 1.910 | 75.2 | 39.2 | 2950.0 | 1150 | 14.5 | |||||||
| EEL27 | 0.867 | 70.0 | 80.7 | 5650.0 | 2500 | 27.0 | |||||||
| EE28 | 0.620 | 51.7 | 82.9 | 4290.0 | 3500 | 21.6 | |||||||
| EE28.5 | 0.660 | 51.4 | 77.6 | 4000.0 | 3300 | 21.0 | |||||||
| EE30 | 1.089 | 65.4 | 60.0 | 3920.0 | 1980 | 19.4 | |||||||
| EE32/9.5 | 0.890 | 74.6 | 86.3 | 6440.0 | 2500 | 32.0 | |||||||
| EE32/11 | 0.746 | 74.6 | 100.0 | 7450.0 | 2900 | 37.5 | |||||||
| EE32.6/37/9.5 | 1.026 | 85.5 | 83.0 | 7150.0 | 2200 | 36.0 | |||||||
| EE33A | 0.589 | 67.4 | 114.0 | 7690.0 | 3700 | 39.0 | |||||||
| EE35/18 | 0.810 | 80.7 | 100.0 | 8070.0 | 2700 | 41.0 | |||||||
| EE35/28 | 0.753 | 67.7 | 89.9 | 6090.0 | 2900 | 30.0 | |||||||
| EE42 | 0.534 | 97.0 | 182.0 | 17600.0 | 4700 | 86.0 | |||||||
| EE42A | 0.415 | 97.4 | 235.0 | 22900.0 | 6100 | 115.0 | |||||||
| EE42/15/50 | 0.630 | 113.0 | 179.0 | 20227.0 | 3400 | 100.0 | |||||||
| EE50 | 0.425 | 95.8 | 226.0 | 21600.0 | 6100 | 115.0 | |||||||
| EE55A | 0.432 | 123.0 | 285.0 | 35050.0 | 5000 | 168.0 | |||||||
| EE55B | 0.348 | 123.0 | 354.0 | 43700.0 | 6500 | 220.0 | |||||||
| EE55C | 0.292 | 123.0 | 422.0 | 52130.0 | 7200 | 260.0 | |||||||
| EE59/57/25 | 0.314 | 130.3 | 414.5 | 54000.0 | 6900 | 270.0 | |||||||
| EE64/30/51 | 0.194 | 98.6 | 509.0 | 50250.0 | 11000 | 255.0 | |||||||
| EE65A | 0.373 | 146.8 | 393.1 | 57728.4 | 5800 | 280.0 | |||||||
| EE65B | 0.274 | 147.0 | 535.0 | 78700.0 | 7800 | 380.0 | |||||||
| EE70 | 0.344 | 159.0 | 409.0 | 65000.0 | 6500 | 380.0 | |||||||
| EE70B | 0.226 | 150.0 | 665.0 | 99800.0 | 9500 | 500.0 | |||||||
| EE70/72 | 0.246 | 164.0 | 665.0 | 110000.0 | 9500 | 388.0 | |||||||
| EE73/70 | 0.236 | 159.0 | 665.0 | 106000.0 | 9500 | 560.0 | |||||||
| EE80/38/20 | 0.469 | 184.0 | 392.0 | 72300.0 | 6000 | 360.0 | |||||||
| EE85A | 0.264 | 188.0 | 714.0 | 134000.0 | 8300 | 660.0 | |||||||
| EE85B | 0.220 | 189.0 | 859.0 | 162000.0 | 10000 | 750.0 | |||||||
| EE100 | 0.344 | 270.000 | 784.000 | 222656.0 | 7300 | 1060.0 | |||||||
| EE110 | 0.191 | 244.0 | 1280.0 | 312000.0 | 11000 | 1520.0 | |||||||
| EE130 | 0.352 | 284.0 | 1600.0 | 454000.0 | 12000 | 2190.0 | |||||||
| EE160 | 0.498 | 398.0 | 1600.0 | 637000.0 | 9000 | 2500.0 | |||||||
| EE188 | 0.100 | 370.0 | 2940.0 | 1087800.0 | 21000 | 5700.0 | |||||||
| EE193 | 0.100 | 380.0 | 3580.0 | 1360400.0 | 21000 | 5800.0 | |||||||
| EE210 | 0.183 | 440.0 | 2400.0 | 1128000.0 | 13500 | 5400.0 | |||||||
| EE240 | 0.235 | 556.4 | 2359.0 | 1312421.0 | 12500 | 5900.0 | |||||||
